Fits: LOSI TEN-SCTE 1.0
LOSI TEN-SCTE 2.0
FEATURES: This Motor Mount is CNC machined
from 7075 aircraft grade aluminum and Black Anodized.
These are designed to reduce wobble in the rear
drive shaft. This motor mount has two 12×18 bearing
incorporated into it to virtually eliminate the out drive
wobble. This lets the rear drive shaft run true and smooth.
The mount also uses a larger motor adjusting screw.
The slot for adjusting to motor has been increased in
length to accommodate pinions from 12-24 teeth.
There is also a third mounting hole in the bottom that
is used on the King Headz Chassis.
*** WILL NOT FIT – TLR TEN-SCTE 3.0 ****

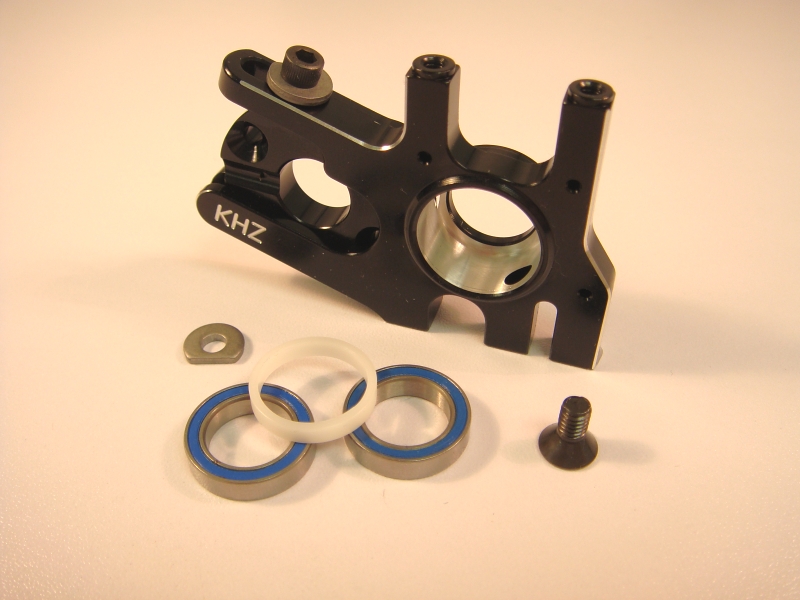

INCLUDES:
(1) Motor Mount Base
(1) Motor Mount Slider
(1) 6-32 X 5/8 SHCS – Alloy
(1) 7/64″ Long Hex Allen Wrench
(2) 6-32 “D” Washer
(1) Bearing spacer
(1) 8-32 X 3/8 FHSC (Used in extra hole on King Headz Chassis)
(2) 12x18x4 sealed bearings
SPECS.
Material: 7075 Aircraft Billet Aluminum
Weight: 35.67 grams (Complete Motor Mount Assembly w/bearings)
Instruction Link: SCTEI-036
Replacement Bearing/Spacer Link: 12X18X4 Bearings/Spacer
