RC8-015NJ – EZ Change Motor Mount 1.5 MM Set Back

Fits: Associated RC8 Buggy or Truggy 1.5 MM Set Back

FEATURES: This Mount is CNC machined from 7075
aircraft grade aluminum and Anodized. These are designed
with a base mount and removable top blocks. Once the mount
is install in the vehicle and the gear mesh is set you can
remove and reinstall the motor without resetting the mesh.

Extra mounts are offered so that other motors can be swapped
out quickly.

++ Mount can not be used with Roto or Pull start motors ++

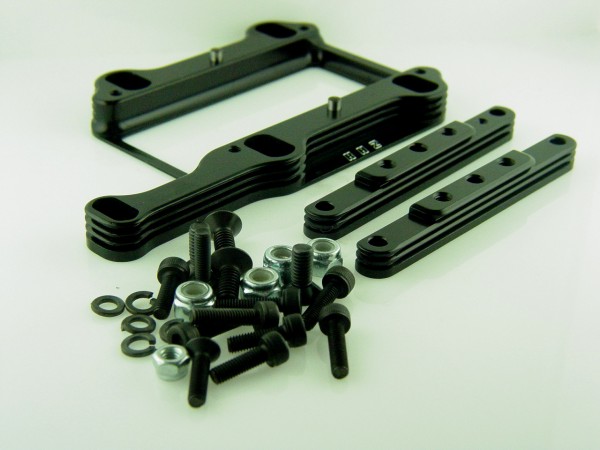

INCLUDES:
(1) Base
(1) Set of top blocks
(4) M4 x 12MM Alloy Flat Head Allen Screws (mounts base to chassis)
(4) M4 Lock Nuts (mounts base to chassis)
(4) M3 x 12MM Alloy Allen Head Screws (mounts top blocks to base)
(4) M3 lock washers (used with M3 x 12MM screws)
(4) M3 x 10MM Alloy Allen Head Screws (mounts motor to top blocks)
(1) M3 x 12MM Alloy Flat Head Allen Screw (mounts extended arm)
(1) M3 Lock Nut (mounts extended arm)

SPECS.
Material: 7075 Aircraft Billet Aluminum
Weight: 28.7grams (Base), 14grams (Top Blocks)
 Instruction Link: RC8I-015NJ

 Hardware Kit Link: KPH-021
