Fits: Mugen MBX7
Mugen MBX7T
FEATURES: This Mount is CNC machined from
7075 aircraft grade aluminum and anodized. These
are designed with a base mount and removable top
blocks. Once the mount is installed in the vehicle and
the gear mesh is set you can remove and reinstall the
motor without resetting the mesh.
This mount will fit either a Nova based or Picco based
motor. There is no need to order different mounts for
different motors.
Extra top block sets can be purchased separately so
that other motors can be swapped out quickly.
++ Mount can not be used with Roto or Pull start motors ++

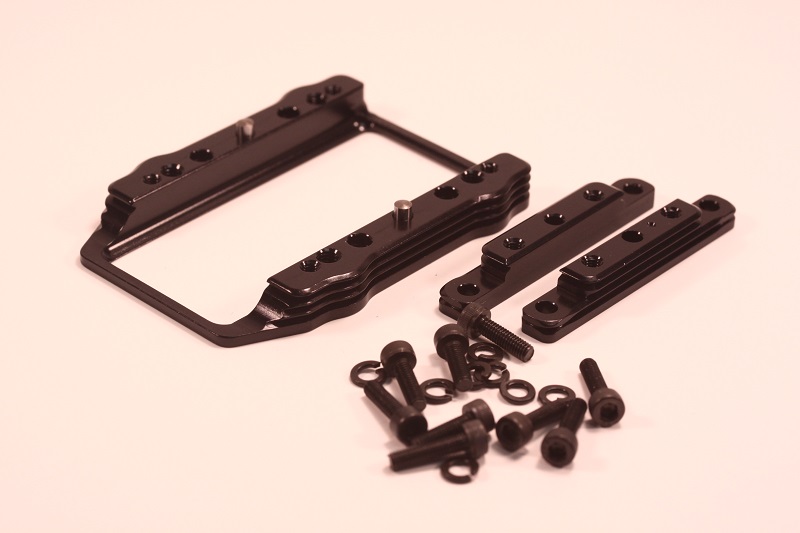

INCLUDES:
(1) Base Mount
(1) Set of top blocks
(4) M3 x 12MM Alloy Allen Head Screws (mounts top blocks to base)
(4) M3 lock washers (used with M3 x 12MM screws)
(4) M3 x 10MM Alloy Allen Head Screws (mounts motor to top blocks)
SPECS.
Material: 7075 Aircraft Billet Aluminum
Weight: 27.75 grams (base and 2 top blocks – no hardware)
Instruction Link: MBX7I-016
Hardware Kit Link: KPH-023
