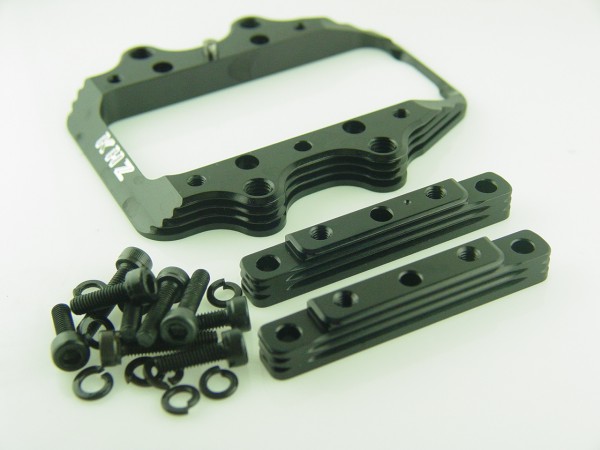

KP-716 – EZ Change Motor Mount (Standard)

Fits: Jammin
X1 CR
X2 CR
X1 CRT
X2 CRT
OFNA Dirt Oval

FEATURES: This Mount is CNC machined from
7075 aircraft grade aluminum and Anodized Black. These are designed
with a base mount and removable top blocks. Once the mount is install
in the vehicle and the gear mesh is set you can remove and reinstall the
motor without resetting the mesh.

This mount will fit either a Nova based or Picco based motors, no need to
order different mounts for different motors.

Extra mounts can be purchased separately (KP-717) so that other motors
can be swapped out quickly.

++ Mount can not be used with Roto or Pull start motors ++

INCLUDES:
(1) Base Mount
(1) Set of top blocks
(4) M3 x 14MM Alloy Allen Head Screws (mounts top blocks to base)
(4) M3 lock washers (used with M3 x 14MM screws)
(4) M3 x 10MM Alloy Allen Head Screws (mounts motor to top blocks)

SPECS.
Material: 7075 Aircraft Billet Aluminum
Weight: 27.04 grams (base and 2 top blocks – no hardware)

 Instruction Link: KPI-716

 Hardware Kit Link: KPH-015
