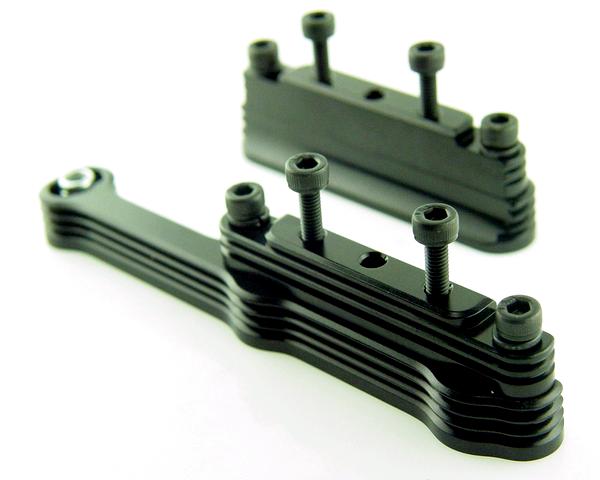

KP-518-BLK – EZ Change Motor Mount

Fits: Mugen
MBX-5
MBX-5R
MBX-5T

FEATURES: This Mount is CNC machined from 7075
aircraft grade aluminum and is Black Anodized.
These are designed with a base mount and removable
top blocks. Once the mount is install in the vehicle
and the gear mesh is set you can remove and reinstall
the motor without resetting the mesh.

Extra mounts can be purchased separately so that other
motors can be swapped out quickly.

++ Mount can not be used with Roto or Pull start motors ++

INCLUDES:
(2) Base Blocks
(1) Set of top blocks
(4) M3 x 12MM Alloy Allen Head Screws (mounts top blocks to base)
(4) M3 lock washers (used with M3 x 12MM screws)
(4) M3 x 10MM Alloy Allen Head Screws (mounts motor to top blocks)
(1) M3 x 12MM Alloy Flat Head Allen Screw (mounts extended arm)
(1) M3 Lock Nut (mounts extended arm)

SPECS.
Material: 7075 Aircraft Billet Aluminum
Weight: xx.xx grams (base and 2 top blocks – no hardware)

 Instruction Link: KPI-518

 Hardware Kit Link: KPH-024
