KP-415 – XRay XB 808 – EZ Change Motor Mount – Extended

Fits: XRay XB 808

FEATURES: This Mount is CNC machined from
7075 aircraft grade aluminum and Anodized. These are designed
with a base mount and removable top blocks. Once the mount is installed
in the vehicle and the gear mesh is set you can remove and reinstall the
motor without resetting the mesh. This mount has an extended leg that
will help to reduce chassis flex near the flywheel hole.

This mount will fit either a Nova based or Picco based motors, no need to
order different mounts for different motors.

Extra top block sets can be purchased separately so that other motors
can be swapped out quickly.

++ Mount can not be used with Roto or Pull start motors ++

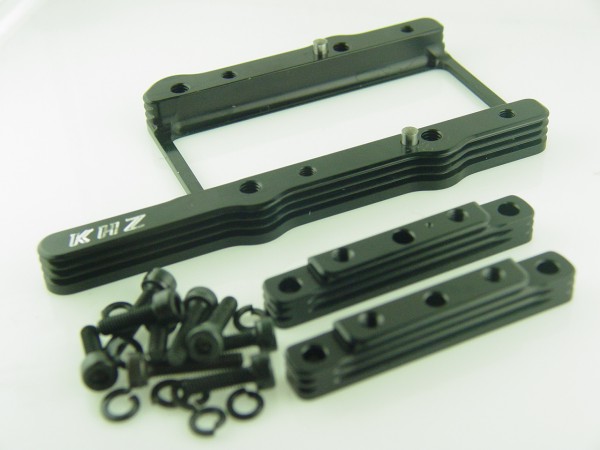

INCLUDES:
(1) Base Mount
(1) Set of top blocks
(4) M3 x 14MM Alloy Allen Head Screws (mounts top blocks to base)
(4) M3 lock washers (used with M3 x 14MM screws)
(4) M3 x 10MM Alloy Allen Head Screws (mounts motor to top blocks)

SPECS.
Material: 7075 Aircraft Billet Aluminum
Weight: 31.8 grams (base and 2 top blocks – no hardware)

 Instruction Link: KPI-415

 Hardware Kit Link: KPH-015
